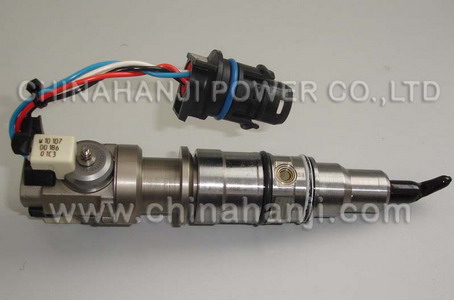

| HEUI Injector HEUI Ⅰ HEUI Ⅱ |
| Ford Power Stroke 6.0L & 4.5L & International VT 365 & VT 275 |
| Injector Application Guide |
| Ford |
6.0L DIT |
2003 - 2004(a) |
F-250/F-550, Excursion |
1843089C91 |
3C3Z-9E527-AE (replaced by 3C3Z-9E527-ABRM) |
AP60800 |
| Power Stroke |
Engine S/N 0 to 137,745 (Huntsville, AL) |
1845879C91 |
|
| |
Engine S/N 6,000,000 to 6,155,636 (Indianapolis, IN) |
1843481C94 |
|
| |
F-650/F-750 |
1843481C95 |
|
| |
Engine S/N prior to 112,360 (Huntsville, AL) |
|
|
| International |
VT 365 6.0L |
2002.5 - 2003 |
4100 - 230HP |
|
|
| 4200 - 175HP, 200HP, 215HP and 230HP |
|
|
| 3200 Bus Chassis - 175HP, 200HP, and 215HP |
|
|
| 3300 Bus Chassis - 175HP |
|
|
| Ford |
6.0L DIT |
2004(b)-2006 |
F-250/F-550, Excursion |
1844751C2 |
4C3Z-9E527-AA 3C3Z-9E527-EARM |
AP60801 |
| Power Stroke |
2006 |
F-650/F-750 |
1846692C92 |
|
| |
2004-2006 |
E Serien |
1845150C92 |
|
| |
4.5L DIT |
2006 |
LCF |
|
|
| International |
VT 365 6.0L |
2004-2006 |
4100 - 230HP |
1844751C2 |
N/A |
|
| 4200 - 175HP, 200HP, 215HP and 230HP |
1846692C92 |
|
| 3200 Bus Chassis - 175HP, 200HP, and 215HP |
|
|
| 3300 Bus Chassis - 175HP |
|
|
| VT 275 4.5L |
2006 |
CF500/CF600 - 200HP |
|
|
Notes: (a) = Engines built before 9/22/03
(b) = Engines built on or after 9/22/03 |
| |
| International base part numbers are represented by the first seven digits & letter "C". Numeric values following the "C" represent engineering revision levels. They do not impact the base product identification. |
|
