Equipment Name : high precision CNC inside and outside circular composite grinding machine

Processing range : For inner circle and external cylindrical grinding.

Processing accuracy : Location accuracy: 2u,
Circular Degree: 1u, Cylindricity degree: 2u,
Roughness: Ra0.1



            Processing advantages : The machine tool is based on UVA module and UVATRONIC control system construct,the bed body is equipped with two sets of grinding wheel sliding table and a double-station transverse sliding table,each sliding table independent movement ,with up/down automatically,can be connected to the conveyor belt,there are two sets of up and down device with the machine,which are designed specifically for grinding operations UVATRONIC third generation of control systems.High precision and high processing efficiency.





Equipment Name : Sophisticated Centerless Grinder

Processing range : Through Type Centerless Grind,Diameter: 2MM-60MM

Processing accuracy : Circular Degree: 0.5u,
Roughness: Ra0.1



           Processing advantages : High precision CNC centerless grinder,with high stability, high efficiency,and the standard machine adopt with ball bearings,can be accurate tuning.Automatic grinding wheel and adjust wheel dressing,accurate automatic compensation, automatic return, automatic measurement and variable speed with easily adjustment.

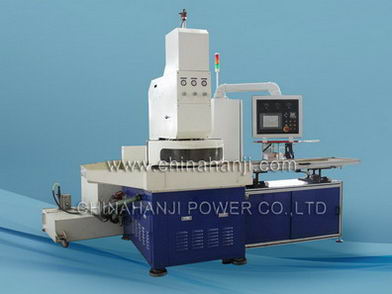

Equipment Name : Double Lapping machine

Processing range : parallel plane two side Lapping Machining

Processing accuracy : Plainness and parallelism
<0.01MM, Surface roughness:Ra0.1 ,flatness <0.9u



            Processing advantages : 1.Equipped with CBN grinding wheels, High speed, high efficiency, high quality grinding. 2.It used in grinding parts and apply to grinding large quantity products. 3.The whole operation drag with a single-motor, so that the upper plate, the underneath plate, the center wheel and the gear ring can independently speed. Four speed best ratio to meet the complex technological requirements.





Equipment Name : all automated middle hole seat grinders

Processing range : the middle hole diameter
4MM-8MM, maximum depth 30MM

Processing accuracy : coaxial degree <2u,
roundness 1u, roughness:Ra0.1



            Processing advantages : 1.Equipped with two grinding rack. There is a rotating table in the middle of the machine. 2.Right grinding rack grinding mesoporous,left grinding rack grinding seat.They can work at the same time.Saving the time,improving the efficient. 3.Once clamping,it can grind mesoporous and seat. 4.It can apply to grinding large quantity products.It can either all automated or semi-automationgrinding。





Equipment Name : (CNC multifunctional spiral grinder)
notch grinder

Processing range : Various straight groove, chute, spiral groove processing

Processing accuracy : Slot parallel <0.01MM,
Width scattered difference <0.01MM,
Roughness Ra0.1



            Processing advantages : The device is all-digital servo three axis linkage system controled . It attracts a mature technology and ideas of advanced CNC system, 16-bit high-performance CPU, Advanced hardware technology effectively improve the system reliability. Imported linear guide rail and a double living spirit screw, high working efficiency, high precision, effectively improve product quality, machine rigidity, stable performance, high manufacturing precision.





Equipment Name : (Precision face cylindrical grinding)Oblique cutting grinding machine

Processing range : Cylindrical surface,conical surface,shaft shoulder of single sided or combination sided of small parts.Grinding diameter1-125MM

Processing accuracy : Roundness 0.5u,
Straightness 1u, Roughness Ra0.1



            Processing advantages : This machine is a high-precision three-axis CNC machine face cylindrical grinding machines, used Mitsubishi E68 systems. The movement of workbench (Z-axis), wheel frame (X-axis) and trim axis (Y), respectively, by the Z-axis,X-axis and Y-axis motor drive screw is completed. Z-axis and X axis to achieve linear and circular interpolation, Y-axis to complete the beveled trim.




Equipment Name : High-speed external cylindrical grinder

Processing range :Max. external cylindrical grinding length 500MM,external cylindrical grinding range Φ8~Φ200

Processing accuracy : roundness 0.5u, straightness 1u, roughness Ra0.1



            Processing advantages : The wheel head adopts a structure of sleeve type bearing bush hydrodynamic bearing mainshafting and features high rotary precision and high rigidity.The feeding guideway uses antifriction & plastic-filming guideway, thus promoting the smoothness and vibration resistance of low-speed operations.

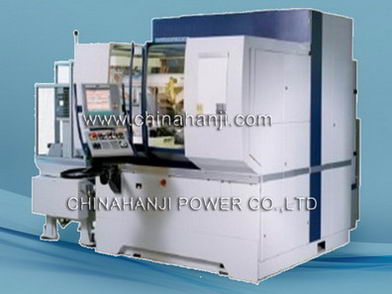

Equipment Name : NC centerless grinder (plunge cut)

Processing range : The machine is used to centerless grinding process of high accuracy oil needle and control piston of workpiece ;External diameter of workpiece: 1.5 -30 mm ;Workpiece maximum length:120 mm

Processing accuracy : Tolerance range: ±0。5 µ



           Processing advantages : Takt time is short and the economy is good, adjustment and replacement tooling short time, excellent stability and damping performance, mixed-grinding spindle maximum speed 120 m / s, high precision grinding and exact repeatable results.




Equipment Name : CNC Surface Grinding Machine

Processing range : various kinds of straight groove & chute processing

Processing accuracy : groove parallelism < 0.01 MM, difference of groove width < 0.01 MM, roughness Ra0.1



            Processing advantages : The device can be processed chute, straight groove, woodruff key on the camshaft and other special equipments. The device is controlled by digital servo motor, which is three axes three linkage system. It has attracted the mature technologies and ideas of domestic and foreign advanced numerical control system. It adopts 16-bit high-performance CPU, advanced hardware technology to improve the system reliability effectively.





Equipment Name : Numerical control spiral grinding machine

Processing range : various kinds of straight groove, chute & spiral groove processing

Processing accuracy : groove parallelism < 0.01 MM, difference of groove width < 0.01 MM, roughness Ra0.1



            Processing advantages : The device is controlled by digital servo motor, which is four axes three linkage system. It has attracted the mature technologies and ideas of domestic and foreign advanced numerical control system. It adopts 16-bit high-performance CPU, advanced hardware technology to improve the system reliability effectively. Adopting the imported linear guide and double living spirit screw, which leads to the high processing and production efficiency, products of high precision, improving the product quality effectively, good rigidity of machine tool, stable performance and high precision manufacturing.




Equipment Name : High-speed semi-automatic external cylindrical grinding machine

Processing range : external cylindrical precision work Ф200X500

Processing accuracy : Diameter size: 0.005mm、Tapers: 0.003 roundness: 0.001, Ra0.4



           Processing advantages : MBS1320E Cylindrical Grinder machine has high precision,reasonable integral layout,operating lever are easy and safe for operating. Stable running without noise can be achieved because of adopting screw pump in hydraulic system. High rotating precision and strong rigidity can be obtained by sleeve-type whole-tile moving hydraulic bare shaft system. Slideway is covered by the plastic so Cylindrical Grinding Machine can gain slow speed running and high immunity to vibration. Semi-automatic Cylindrical Grinder can perform semi-automatic precision cutting, longitudinal grinding to make high precision parts by using limited stroke or controlled by process gauge in small batch or mass production.

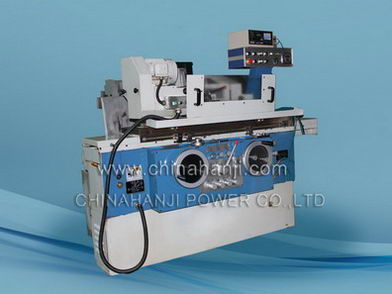

Equipment Name : Universal external cylindrical grinding machine

Processing range : external cylindrical precision workФ125X350

Processing accuracy : Diameter: within 0.01mm
Roundness: 0.0025 , cylindricity: 0.005 Ra0.6



            Processing advantages : The machine tool applies for working parts such as middle and small axle, sleeve and flange plate and also outer cylindrical surface, outer circular conical surface, inner hole, inner circular conical surface and circular head grinding. The grinding carriage, head stock and workbench can run for some angles. The bench and grinding carriage can be hydraulic drive and manual operation to adapt the demand of workshop, tool workshop and machine maintenance. This machine tool is used with roof tip, chuck or spring chuck for clamping the working parts.





Equipment Name : High-speed external cylindrical grinding machine

Processing range : external cylindrical workpiece, the maximum grinding length 500MM,external cylindrical grinding range Φ8 ~ Φ200

Processing accuracy : Roundness: 0.5u
Straightness: 1u , Roughness: Ra 0.1



           Processing advantages : The grinding carriage is used with sleeve type dynamic pressure for spindle series. The rotation precision and rigidity are good. The mould guide rail is used in feed-guide rail and improves the stationarity and vibration resistance when running slowly.
